Description
- Brand Name: MiCODUS
- Origin: Mainland China
- GPS Geographic Location: europe
- Voltage: 12V
- Battery Life: 30 Hours & Up
- Item Size: 89(L) x 37(W) x 12(H)
- Special Feature: Internet Connected
- GPS type: GPS Tracker
- Model Name: MV400G
- Screen Size: No screen
- Gps Module: Yes
- Out Power: 0.5W
- Certification: CE
- Type: 4G GPS Tracker
- Operating Voltage: 12/24/36/48/60/72V DC
- Built-in Battery: Embedded 3.7V/140mAh battery
- GSM band: 850/900/1800/1900Mhz
- Advantage: cut off oil,realtime tracking,
- Tracking platform: lifetime free

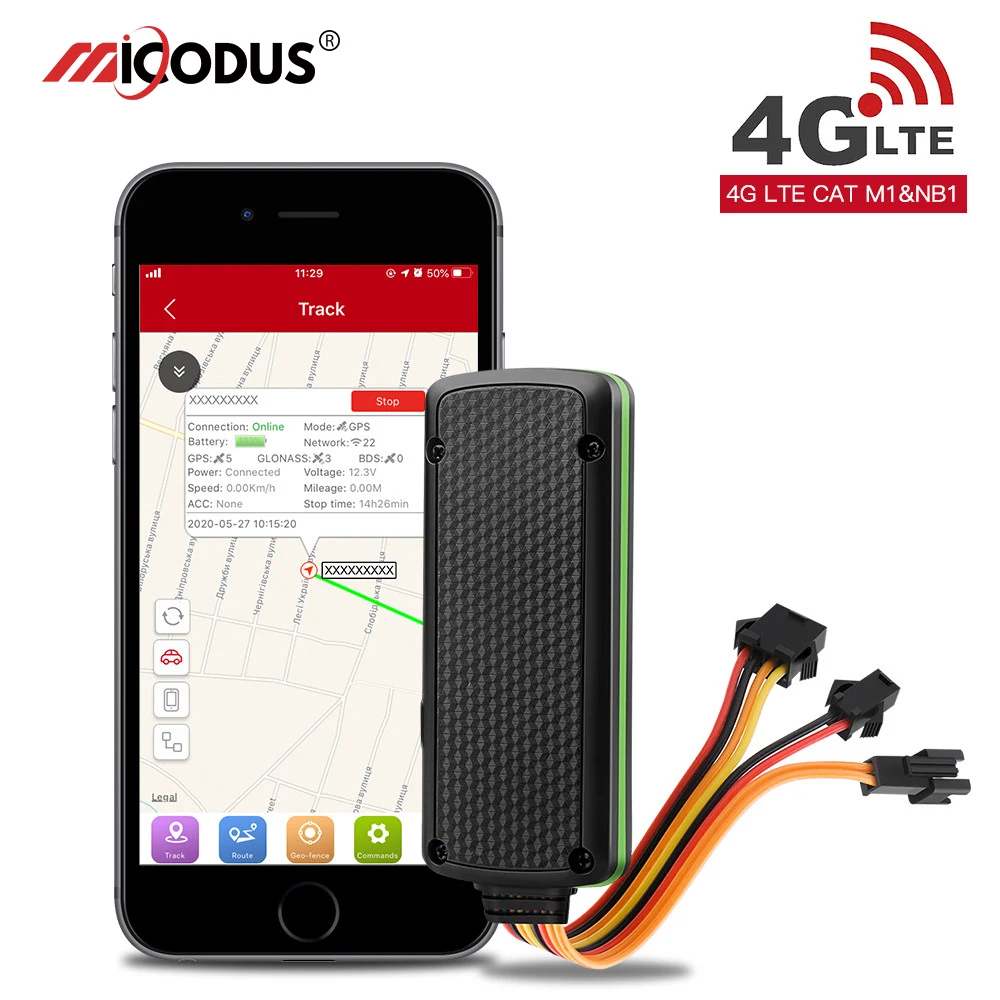

MV400G 4G GPS Tracker
GPS+AGPS Realtime tracking
AGPS assisted positioning to improve the positioning speed of our device.
Operating Voltage
Super wide input voltage:7-72v.suitable for all kinds of cars.
Built-in G-sensor
The built-in sensor of the device, when the device vibrates, our mobile phone will receive an alarm message to avoid theft.
Waterproof IP65
Multiple alarm functions
1.Low battery alarm&power disconnect;
2.overspleed alarm;
3.Geo-fence;
4.SOS alarm;(If you need this feature, please choose to configure the SOS line）；
5.Move alarm;
6.Loosing alarm.
SMS inquiry device position
Platform and mobile app
Website:http://www.micodus.net
Mobile APP:scan the QR code in the image and download the mobile app,log in with the device’s id (above device sticker) number and password; (the original password is :123456. You can modify it).
SIM card installation
Overview
MV400G, Is a 4G GPS tracker device, it work band is 800/900/1800 / 1900Mhz, can be used globally, we can monitor your vehicle by GPS satellite positioning system, temperature detection unit GPRS / LTE CAT M1, communication and-Internet a real-time remote location and temperature monitoring and control of vehicles can be achieved through a powerful service platform. It plays a significant role in logistics and cold chain, helping customers to achieve transparent management, reduce costs ensure safety, and improve efficiency.
Product Features
1. Supports GSM/LTE CAT M1;
2.Super Wide Input Voltage: 7-72V DC;
3.GPS precise positioning, support A-GPS uploaded by LTE/GPRS regularly, real-time tracking and history track playback;
4.ACC status detection;
5.Support SOS, Temperature, External battery, Gplo(Hardware customization Choose one of the four );
6.Serial port, also can be GPIO port(Firm ware Customization);
7.Built-in battery, power disconnect alarm low battery alarm;
8.Built-in G-sensor vibration, collision and falling alarm;
9.Geo-fence alarm, speed &shift alarm;
10.Relay to cut engine, auto cut engine when over speed and recover when normal speed;
11.EELINK protocol 2.0, Firmware OTA;
12.Waterproof level IP65.
Specification
Antenna: LTE Antenna Internal, GPS Antenna Internal
GPS Positioning Accuracy: 5m-15m (Depending on GPS Signal)
LBS Positioning Accuracy: ~ 200m (Depending on density of base stations)
GPS Frequency: L1, 1575.42MHz C / A code
Network: LTE / FDD, WCDMA, GSM, SMS
GSM Frequency: 850/900/1800 / 1900MHz
GPRS: Class 12, TCP / IP
LED Indicator: GPS-Blue; GSM-Red
Hot / Warm / Cold Start: <3x, <15s, <60s
Main PCB: LTE Module
Built-in Battery: Embedded 3.7V / 140mAh battery for emergency alarm when removing main power
Optional Accessories: Relay, Temperature Sensor, SOS, External Battery.
Work Current: <30 mA
Standby Current: <15 uA
IP Waterproof Level: IP65
Dimensions (mm): 89mm x 37mm x 12mm
Operating Voltage: 9-72V DC
Environment Temperature: -20 ○ C-65 ○ C
Environment Humidity: 20% ~ 80% RH
