Description
- Brand Name: NoEnName_Null
- Hign-concerned Chemical: None
- Type: Hand Tool Parts
- Origin: Mainland China
- Year: Universal
- Model: Universal
- Type: GPS Tracker
- Placement: Relay design
- Car Fitment: Universal
- OS: Android & ios
- Screen Type: no screen
- Resolution: none
- Combination: Other
- Connection: other
- Warranty: 1 Year
- Place of Origin: Guangdong, China
- Brand Name: MiCODUS
- Model Number: MV930G
- Use: Automotive/motorcycle
- Car Make: universal
- Size: 72x 30 x 34 mm
- Backup Battery: 60mAh
- Operating Voltage: 9-95VDC
- Network: 4G LTE Cat1 & 2G GSM/GPRS/EDGE
- GPS Sensitivity: -159dBm
- Positioning Ways: GNSS+LBS
- Special Feature: ACC Detection,Cut off Fuel,Real time Tracking
- Track View: Andriod&iOS APP
- Tracking system: www.micodus.net
- APP: MiCODUS
If you need me to reply to you now, you can add my Whats.app + 86 17375802872, Thank you again! Wishing you a happy life.
#detail_decorate_root .magic-0{border-bottom-style:none;border-bottom-color:#28292a;font-family:Roboto;font-size:16px;color:#fff;background-color:#262424;font-style:normal;font-weight:bold;border-bottom-width:2px;padding-top:8px;padding-bottom:4px;padding-left:5px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:450px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:750px;height:450px}#detail_decorate_root .magic-4{vertical-align:top}#detail_decorate_root .magic-5{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-6{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-7{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-9{font-size:16px}#detail_decorate_root .magic-10{font-weight:bold}#detail_decorate_root .magic-11{width:750px;border-collapse:collapse}#detail_decorate_root .magic-12{min-height:28px;padding:5px 10px;width:218px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-13{text-align:center}#detail_decorate_root .magic-14{min-height:28px;padding:5px 10px;width:488px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-15{display:none}#detail_decorate_root .magic-16{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-17{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-18{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-19{margin-bottom:0}#detail_decorate_root .magic-20{position:relative;width:100%}#detail_decorate_root .magic-21{overflow:hidden;width:750px;height:168px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-22{margin-top:0;margin-left:0;width:750px;height:168px}#detail_decorate_root .magic-23{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-24{overflow:hidden;width:750px;height:204px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:0;margin-left:0;width:750px;height:204px}#detail_decorate_root .magic-26{overflow:hidden;width:750px;height:516px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:750px;height:516px}#detail_decorate_root .magic-28{overflow:hidden;width:750px;height:441.75px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:750px;height:441.75px}#detail_decorate_root .magic-30{overflow:hidden;width:750px;height:556.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:750px;height:556.5px}#detail_decorate_root .magic-32{overflow:hidden;width:750px;height:325.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:750px;height:325.5px}#detail_decorate_root .magic-34{overflow:hidden;width:750px;height:684px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:750px;height:684px}#detail_decorate_root .magic-36{overflow:hidden;width:750px;height:221.25px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-37{margin-top:0;margin-left:0;width:750px;height:221.25px}
>>” id=”ali-anchor-AliMagic-je3wrp”>MiCODUS / Products Description >>>
New MV930G Anti-Theft Real time Mini Car Gps Tracking Device Relay 4G Engine Cut Off Micodus Gps Tracker With Remote Control
Main Features:
1. Network: 4G LTE CAT1+ 2G GSM/GPRS
2. ACC Detection
3.Mini and Hidden Design
4.Auto alarm
5. Wide Operating Voltage 9-90V DC, compatible with vehicles on the market!
6. Remotely Cut Off & Resume Fuel.
7. GNSS+LBS+BDS+AGPS Positioning Ways.
8. Realtime Tracking.
9. History Route Playback.
1. Network: 4G LTE CAT1+ 2G GSM/GPRS
2. ACC Detection
3.Mini and Hidden Design
4.Auto alarm
5. Wide Operating Voltage 9-90V DC, compatible with vehicles on the market!
6. Remotely Cut Off & Resume Fuel.
7. GNSS+LBS+BDS+AGPS Positioning Ways.
8. Realtime Tracking.
9. History Route Playback.
10. Low Voltage Alarm
11. Anti-theft Alarms: Vibration alarm, Displacement alarm, Geo-fence alarm, Power failure alarm, Tow alarm, Oversped Alarm.
13.Built-in 60mah battery,need be connected to external power to working.
14.Warranty one year
11. Anti-theft Alarms: Vibration alarm, Displacement alarm, Geo-fence alarm, Power failure alarm, Tow alarm, Oversped Alarm.
13.Built-in 60mah battery,need be connected to external power to working.
14.Warranty one year
15. Remotely Firmware OTA
16. FREE WEB TRACKING SOFTWARE AND MOBILE APP In The First Year.
17. MiCODUS Tracking Platform Supports Multiple Languages.
16. FREE WEB TRACKING SOFTWARE AND MOBILE APP In The First Year.
17. MiCODUS Tracking Platform Supports Multiple Languages.
www.micodus.net
iOS&Android APP: Micodus
|
Model
|
MV930G
|
|
Weight
|
70g
|
|
Dimensions
|
76mm(L)*32mm(W)*32mm(H)
|
|
Battery
|
Built-in 3.7V 60mAh Polymer Battery
|
|
Working Voltage
|
9-95V DC
|
|
Working Current
|
12V/Average 56mA
|
|
Sleep Current
|
12V/Average 7.7mA
|
|
Working Temperature
|
-20℃ – 75℃
|
|
Working Humidity
|
10%-85%RH
|
|
Built-in Memory
|
5000pcs GPS data can be stored at network blind area
|
|
SIM Card
|
Nano SIM
|
|
Celluar Antenna
|
Built-in, FPC
|
|
Working Frequency
|
2G GSM/GPRS: 850/900/1800/1900MHz
|
|
4G LTE CAT1: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66; LTE-TDD: B34/B38/B39/B40/B41
|
|
|
GNSS
|
GPS+BDS
|
|
GPS Frequency
|
L1: 1575.42±1.023MHz
|
|
BDS Frequency
|
B1:1561.098±2.046MHz
|
|
Satellite Channels
|
32
|
|
Hot/Cold Start
|
<1s,<32s @ Open Sky
|
|
GNSS Antenna
|
Built-in Ceramics GNSS Antenna, 25mm*25mm*4mm
|
|
Positioning Type
|
GNSS+BDS+LBS+AGPS
|
|
Accurancy
|
Location accuracy: <10m(1σ)
|
|
Timing accuracy: <30ns(1σ)
|
|
|
Speed accuracy: <0.1m/s(1σ)
|
Multiple Design Highlights

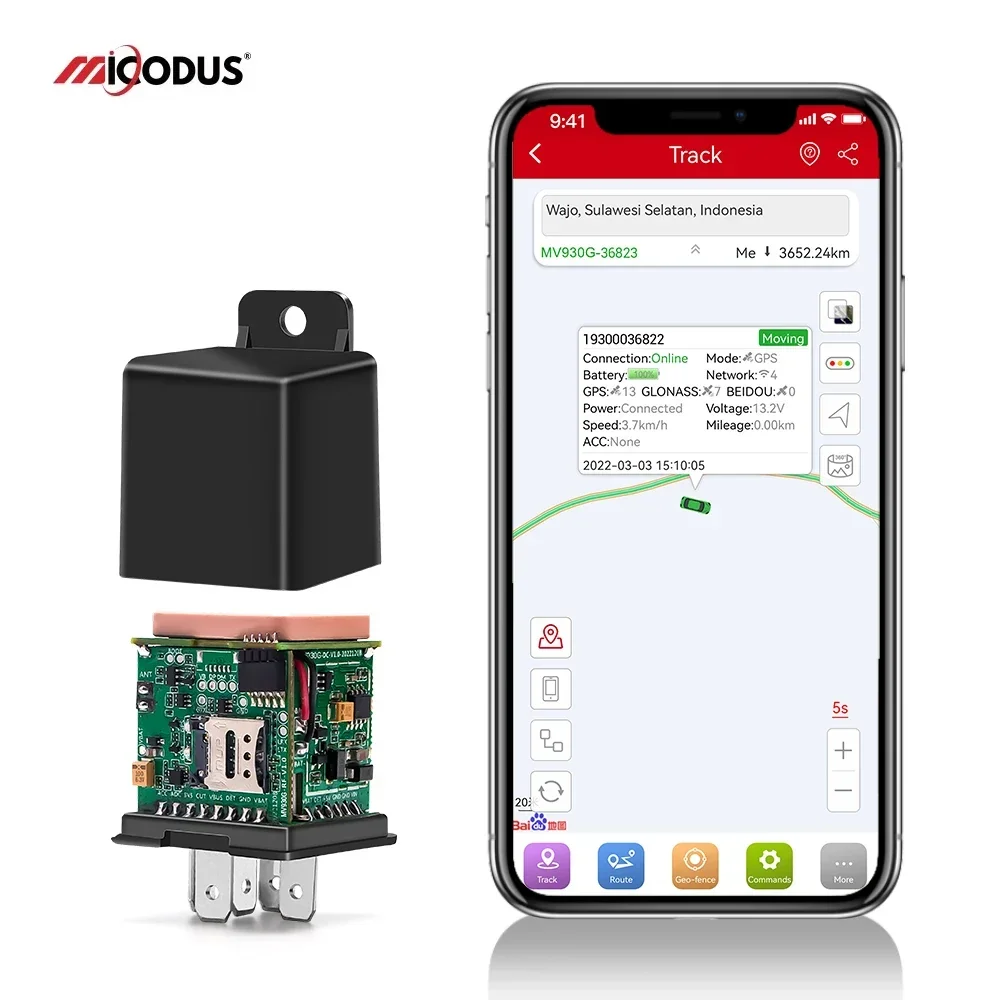

MV930G 4G car tracker is relay apperance design, small size, goos camouflage, simple installation, and very easy to hide.
4G+2G Network
MV930G car gps tracker works with latest 4G LTE CAT1 network, fast and stable, and backward compatible with 2G GSM network, applicable to all countries in the world.
Google Maps Real-Time Positioning
Google Maps real-time positioning, the minimum data upload time interval is 5 seconds.
Historical Track Playback
MiCODUS tracking platform can store data for up to 180 days.
Low Voltage Alarm
MV930G can detect vehicle battery’s voltage, and with low voltage alarm function.
Remotely Engine Start And Stop
It can remotely cut off and restore the fuel circuit, which is suitable for vehicle theft or loss of control of the vehicle.
Auto Arm By ACC
Intelligent automatic arming and disarming according to ACC status, no manual operation required.
Multiple Anti-Theft Alarm
Multiple anti-theft alarm functions: Vibration alarm, Displacement alarm, Engine start and flameout alarm, Geo-fence alarm, Power failure alarm, Tow alarm
Wide Voltage 9-90V DC
Wide voltage 9-90V DC, can be applied to various vehicles: cars, trucks, electric vehicles, motorcycles, bus etc.
GPS Data Supplementary Of Network Blind Area
Without network, the device will disconnect with the server, but the GPS data will be saved by the built-in memory, 5000pcs GPS data can be stored at the most. once the network signal recovered the saved data will be uploaded to the tracking server.
GPS Data Compens By Cornering
When turning, the device will upload a GPS data in order to reflect the details of turning, the uploaded positioning data will be more denser and the trajectory query is more accurate.
Web Tracking Platform and Mobile APP
Free Micodus tracking system in the first year! Web server and both iOS and Android version APP are available!
1). Time Zone & Local Language: More than 10 languages and timezone settings
2). Multiple Account Support: Allow you to set up an account for company users to manage many vehicles
3). Group Management: The user can manage the vehicle by setup different groups
4). Reporting and Export: The overview report, Speeding report, Mileage Report, Stop Report
5). Freely import GPS devices.
6). MiCODUS tracking platform support most GPS models.
7). Micodus platform can host unlimited quantity of gps tracking device.
2). Multiple Account Support: Allow you to set up an account for company users to manage many vehicles
3). Group Management: The user can manage the vehicle by setup different groups
4). Reporting and Export: The overview report, Speeding report, Mileage Report, Stop Report
5). Freely import GPS devices.
6). MiCODUS tracking platform support most GPS models.
7). Micodus platform can host unlimited quantity of gps tracking device.
www.micodus.net
APP: MiCODUS
>>” id=”ali-anchor-AliMagic-nq0l63″>MiCODUS / Recommend >>>
>>” id=”ali-anchor-AliMagic-wjyhxl”>MiCODUS / Why Choose Us >>>
>>” id=”ali-anchor-AliMagic-d10jnn”>MiCODUS / Company Profile >>>
>>” id=”ali-anchor-AliMagic-hf77pg”>MiCODUS / Production Process >>>
>>” id=”ali-anchor-AliMagic-yqzw36″>MiCODUS / Certifications >>>
>>” id=”ali-anchor-AliMagic-b80bpf”>MiCODUS / Customer Feedback >>>
>>” id=”ali-anchor-AliMagic-36w8s0″>MiCODUS / FAQ >>>
1.What is your minimum order quantity?
A: 1pc.
2. Why the GPS tracker device is off-line?
A: Maybe 3 reasons: device power off or outage; weak or none signal;SIM card debts or GPRS service overdue.
3. Why can not monitor?
A: Because you didn’t set up the specific number and open the caller display of you SIM card. The latter will affect the former and lead to monitor failure.
4. What is the applicable range of this product?
A: We on intelligent vehicle terminal for logistics vehicles, private cars, taxis, motorcycles, e-bikes, motorbikes, buses, etc.
5. Can you do hardware/firmware customization?
A: Yes, OEM/ODM is our specialty. Our R&D team has more than 10 years industry experience.
6. How is quality control and warranty?
A: 2 year warranty. All products have been 100% strictly Quality Checked before packing.
7.Why are your prices higher than other sellers?
A:We have strict quality requirements for our products and invest a lot of cost in production. We are committed to providing high-quality products for our customers .
8. Does your device have whereabouts safety hazards? A: Don’t worry, when you log in for the first time, the system will ask you to change your password compulsorily. No one can view your device without your permission.
9. Can I add other brands of device to your tracking platform, or add your device to other brands’ tracking platform? A: Generally, as long as the network protocol is compatible, the device can be added to the tracking platform.
